How to Add Mermaid Diagrams to Confluence

Confluence — Cloud and Data Center — has no built-in Mermaid macro, so diagram code pasted into a page renders as text. Marketplace apps add one, but every app needs a site admin to install it and most are priced per user. The zero-install route is to render the code in your browser and paste the exported image straight into the page, which works in every Confluence instance and costs nothing.

No signup · No app install · No watermark · Local browser rendering

Does Confluence support Mermaid natively?

No — no built-in macro

Neither Confluence Cloud nor Data Center ships a Mermaid macro. The Atlassian Marketplace has several Mermaid apps, and draw.io's Confluence app can also insert Mermaid code — all of them need an admin install, and most are billed per user; Atlassian Labs publishes a free one. Pasting an exported PNG or SVG needs none of that: any page author can do it, in any space, today.

Add a Mermaid diagram to a Confluence page

  1. 1

    Paste your Mermaid code

    Drop your diagram code into the converter below. It renders locally in your browser — nothing is uploaded, which matters for internal architecture docs behind your firewall.

  2. 2

    Match your space's look

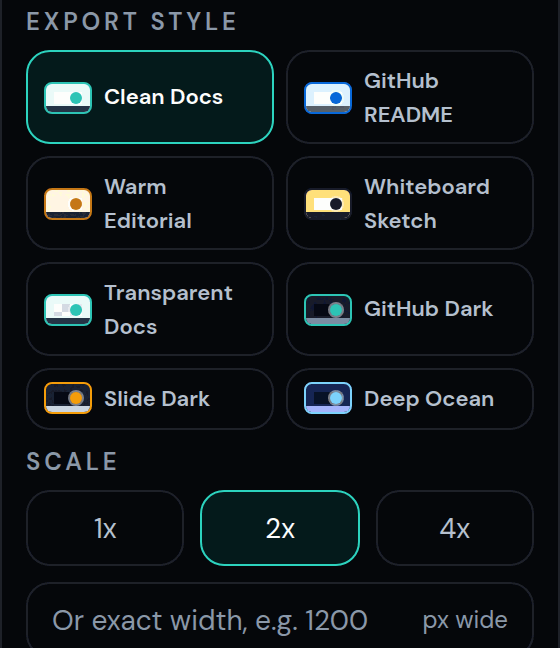

    Confluence pages are white, so the white background with the Clean Docs style reads like a native figure. If your space uses a dark theme, switch to GitHub Dark so labels stay readable.

  3. 3

    Export PNG at 2x — or SVG

    A 2x PNG stays sharp when readers zoom the page or print it. Confluence Cloud also displays SVG attachments, which scale cleanly for large architecture diagrams.

  4. 4

    Drop it into the page

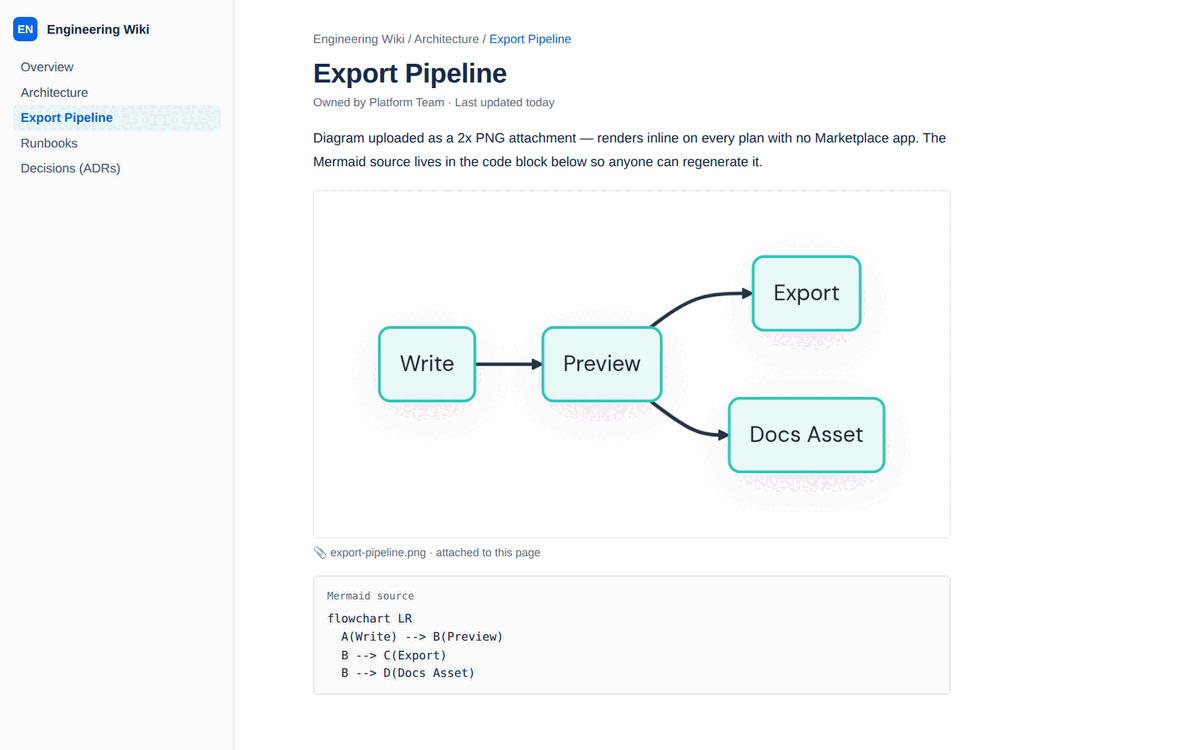

    Drag the exported file into the Confluence editor — it attaches automatically and displays inline. Or use Insert → Files and images, then resize in place and add alt text so screen readers can describe the diagram.

Three ways to get Mermaid into Confluence

OptionWhat you needWhat readers seeTrade-off
Marketplace Mermaid appA site admin to install it; most are paid per userA live diagram, redrawn from the code on the pageCheck which Mermaid version the app bundles — newer diagram types need a recent one
Atlassian Labs Mermaid diagrams viewerA site admin to install it; free and open source; Cloud onlyA diagram drawn from a code block on the same pageYou write the code in a plain code block, so there is no side-by-side preview while editing
Exported PNG or SVGNothing — any page author can do it, in Cloud or Data CenterA fixed image in the style you choseEditing means re-exporting, so keep the code in a code block under the image

If a space admin will install an app and the diagrams change often, an app saves the export step. For a one-off figure, a page in a space you do not administer, or Data Center without the app, export it: the steps above take a minute, and the syntax checker catches errors before the image goes on the page.

Keep the diagram editable on the page

An image cannot be edited in Confluence, so put the Mermaid source in a code block directly under it — collapsed in an Expand macro if it is long. The next person copies the code, pastes it into the editor below, changes it, and replaces the attachment. Teams moving between tools can compare the options in draw.io vs Mermaid; for a document outside Confluence, the Word and Google Docs guides use the same export.
